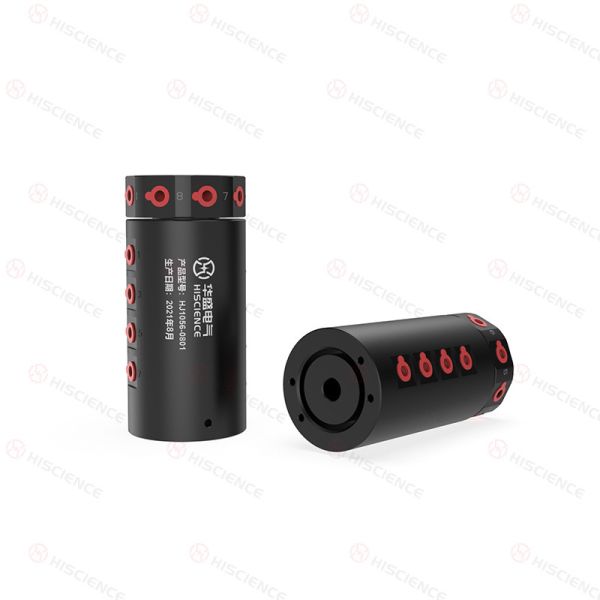

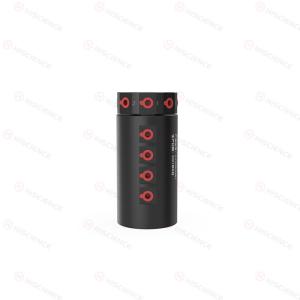

1 passage gas + multi circuits electric hybrid slip ring

Product Description:

Features:

• Gas and Electric Hybrid Transmission: The Gas + Multi-Circuits Electric Hybrid Slip Ring combines the capabilities of gas and electric transmission into a single rotating interface. It allows for the simultaneous transfer of gas and multiple electric circuits, providing a versatile solution for hybrid power and signal transmission.

• Multiple Electric Circuits: This slip ring is equipped with multiple electric circuits, enabling the transmission of multiple signals or power connections simultaneously. It provides flexibility and versatility in connecting various electrical components or devices within rotating systems.

• Gas Compatibility: The slip ring is compatible with various gases, allowing for the transmission of gas required for specific applications. It ensures a reliable and efficient supply of gas to pneumatic devices, gas-powered tools, or any other gas-dependent components integrated into rotating systems.

Typical Application:

• Material Handling Systems: The slip ring is suitable for material handling systems that require both gas and electrical power transmission. It enables the integration of gas-powered actuators, pneumatic clamps, or grippers, along with the transmission of multiple electrical signals for precise control and automation.

• Automated Assembly Lines: In automated assembly lines, the slip ring facilitates the transmission of gas and multiple electrical circuits to rotating robotic arms, tool changers, or other automated components. It supports seamless integration and synchronized operation, improving productivity and assembly line efficiency.

• Packaging and Labeling Equipment: This slip ring is commonly used in packaging and labeling equipment. It enables the transmission of gas for pneumatic actuators or tools, as well as the transmission of multiple electrical circuits for sensor signals, control signals, or power connections, ensuring smooth and accurate packaging or labeling processes.

Specifications:

Drawing for HST196-P116-S69-G11-J01(3KM02-09-08):

FAQ:

How many electric circuits are available in this slip ring?

The number of electric circuits may vary depending on the specific slip ring model and customization options. It is recommended to consult with the manufacturer or supplier to determine the available number of electric circuits and their specifications.

Can the slip ring handle different types of gases?

Yes, the slip ring is designed to be compatible with various gases commonly used in pneumatic systems. However, it is important to verify the specific gas compatibility requirements with the manufacturer to ensure proper operation and safety.

What is the maximum current rating for the electric circuits?

The maximum current rating of the electric circuits can vary depending on the slip ring model and configuration. It is advisable to consult the manufacturer's specifications or contact their technical support for accurate information regarding the current rating.

Shenzhen Hiscience, linking the future of technology

Shenzhen Hiscience Co.,Ltd. (abbreviation: Hiscience) was established in 2011.

It is a professional slip ring manufacturer integrating independent research and development, production and sales. It is the only R&D department in the domestic slip ring industry composed of senior R&D teams in the three major fields of laser technology, communication industry and microwave devices. It is accurate, efficient and quick to respond to customers. meet customer needs with customized products and services.

The company's products strictly control the quality from design to mass production, and have a complete testing system. At the same time, a simulation testing platform is built according to different customer needs to ensure product consistency and reliability. The products win the trust of customers with their high quality and are widely used in civil and military fields such as engineering machinery, automation equipment, intelligent manufacturing, medical instruments, new energy wind power generation, aerospace, navigation and ships, security monitoring and so on.
